Description

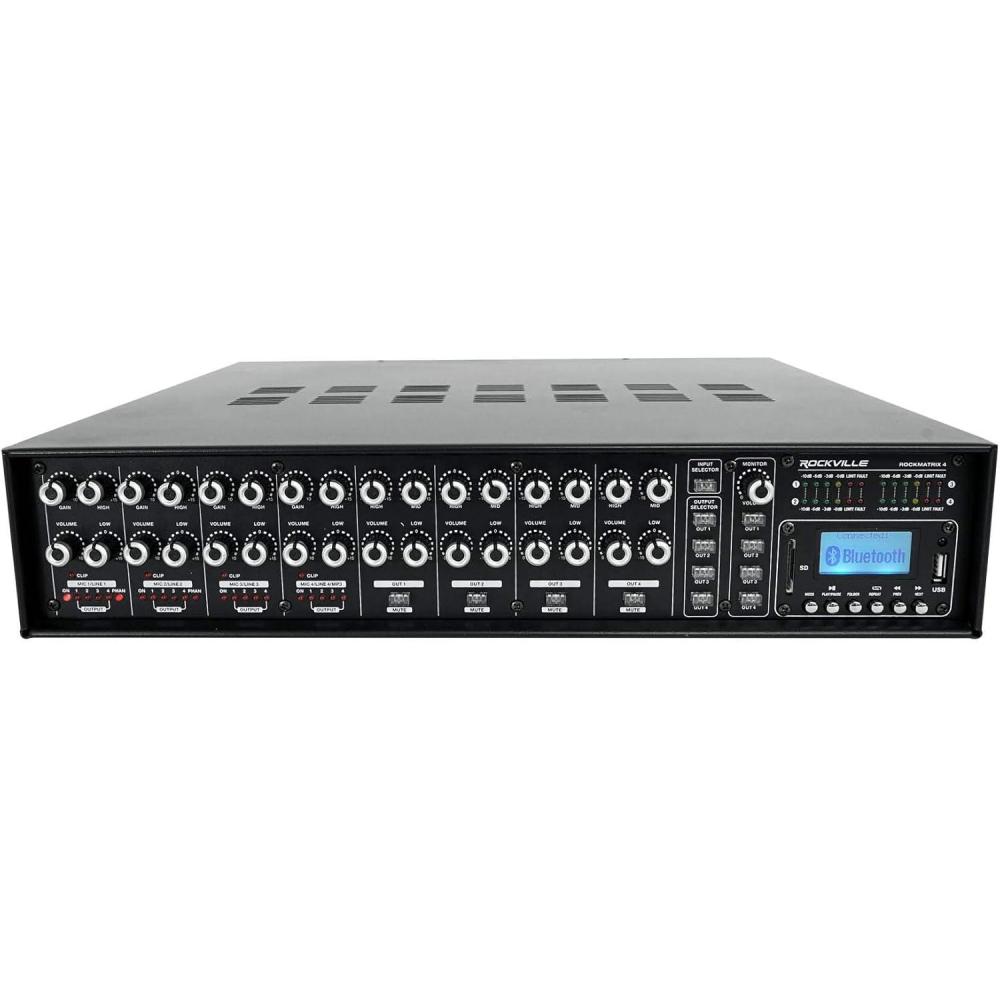

What's in the Box: Matrix Amplifier. Remote. Detachable Rack mount ears. Power Cable. Owner's manual. Warranty. Rockville ROCK MATRIX 4 Zone 70 Volt Commercial Amplifier. 440 Watts Total RMS @ less than 1 % THD (110 Watts RMS per zone x 4 Zones). Route Any Sources to Any Zones. 4 separate zone output and you can route any source to any zone and also route a microphone input to specific zone(s)

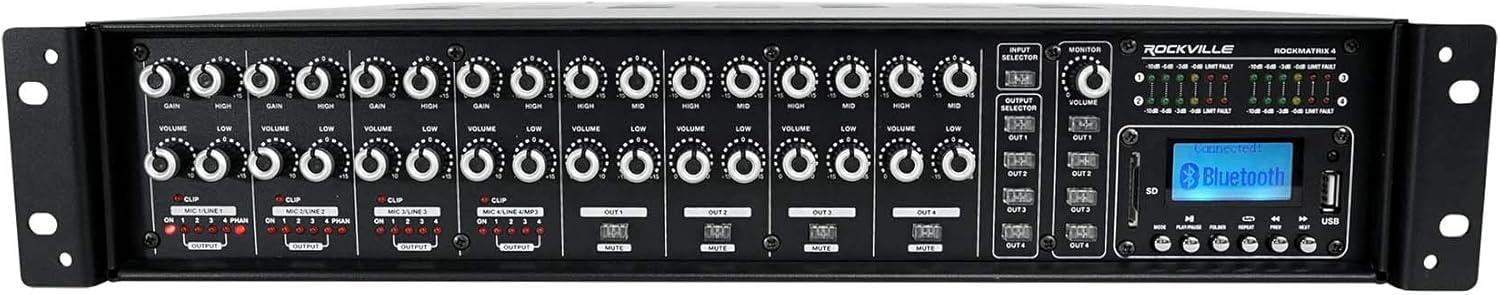

Supports multi zone installations using 70 volt, 100 volt, 16 ohm, 8 ohm, and 4 ohm speaker set ups. 4 line/mic inputs (2 of the mic inputs have selectable phantom power for condenser mics). 19″ rack mountable (removable rack brackets). Built in 1w monitor speaker allows you to listen to playback on any zone. 100 volt RMS Power: 4 x 110 Watts RMS. 70 volt RMS Power: 4 x 110 Watts RMS. 4 ohm RMS power: 4 x 110 Watts RMS. 8 ohm RMS power: 4 x 110 Watts RMS. 16 ohm RMS power: 4 x 110 Watts RMS

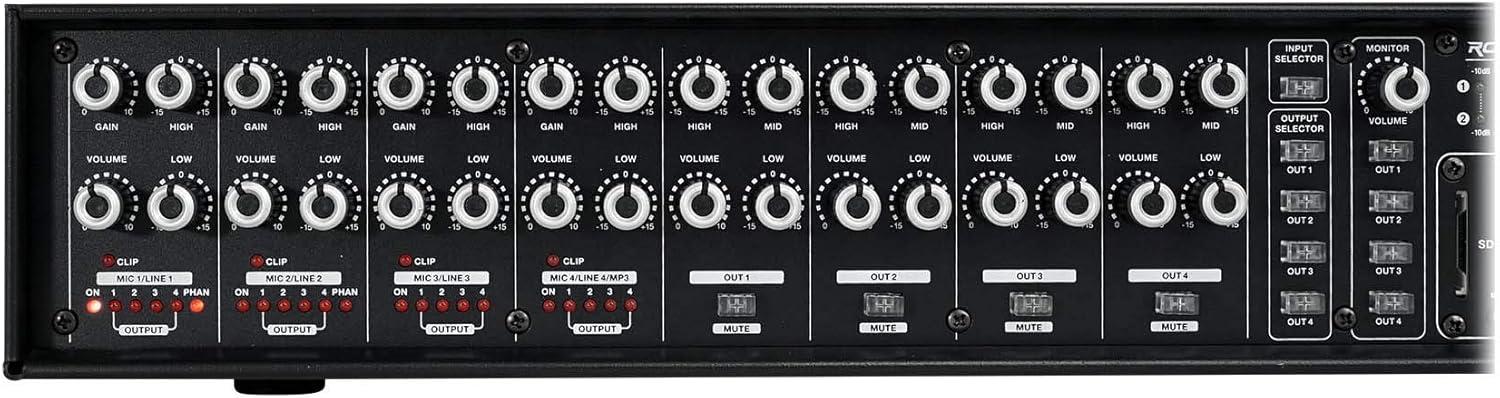

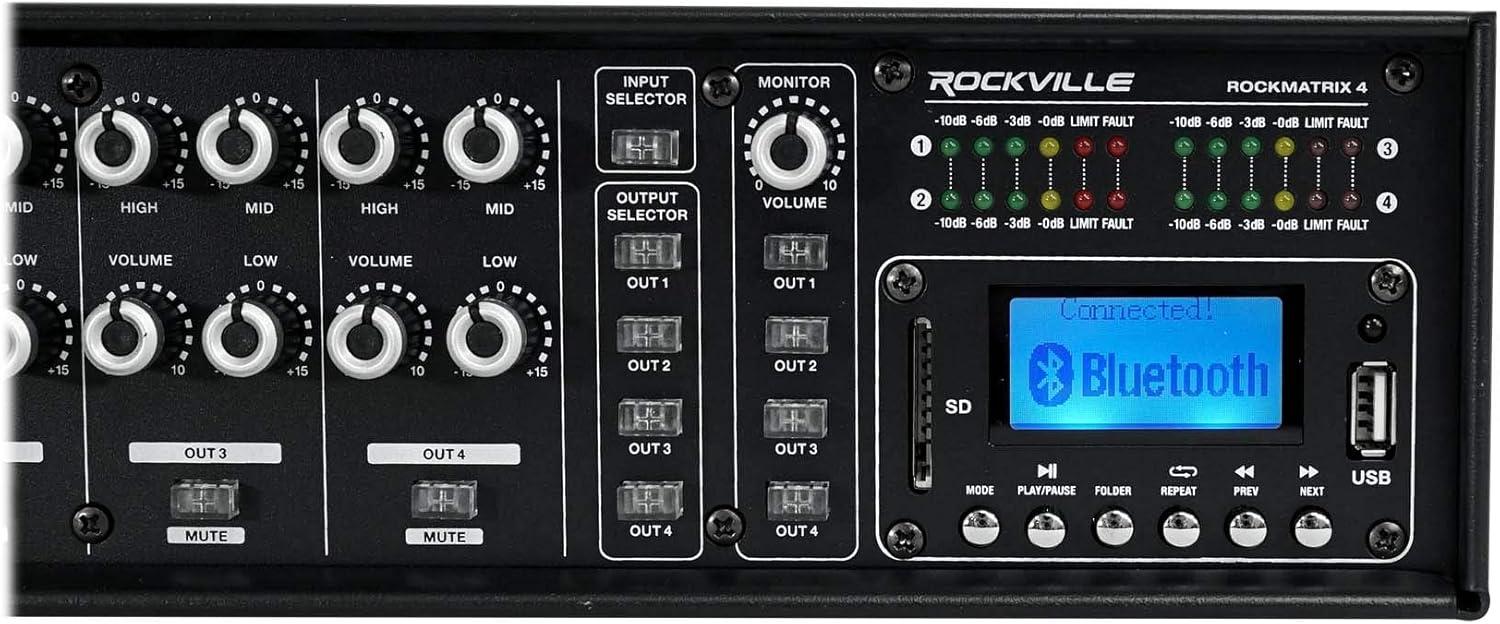

Built in Bluetooth 5.0 chip allows audio streaming with matrix assigning to any zone(s). USB input to play audio stored on a thumb drive with matrix assigning to any zone(s) (32gb max). SD card slot to play music stored on an SD Card with matrix assigning to any zone(s) (32gb max). Separate volume control for MIC1/LINE1, MIC2/LINE2, MIC3/Line3,MIC4/LINE4/MP3 inputs. BASS and Treble controls. Built in limiter and clipping indicator
MIC 1 priority button will lower the music when talking into the mic when priority is activated. 6 segments signal level indication (-10dB, -6dB, -3dB, 0dB, limit, clip). Built in fan cooling system keeps component cool at all times. Built in 1/4″ fire input will override the system when activated in case of emergencies. Siren output allows you to connect a siren that would get activated in case of an emergency

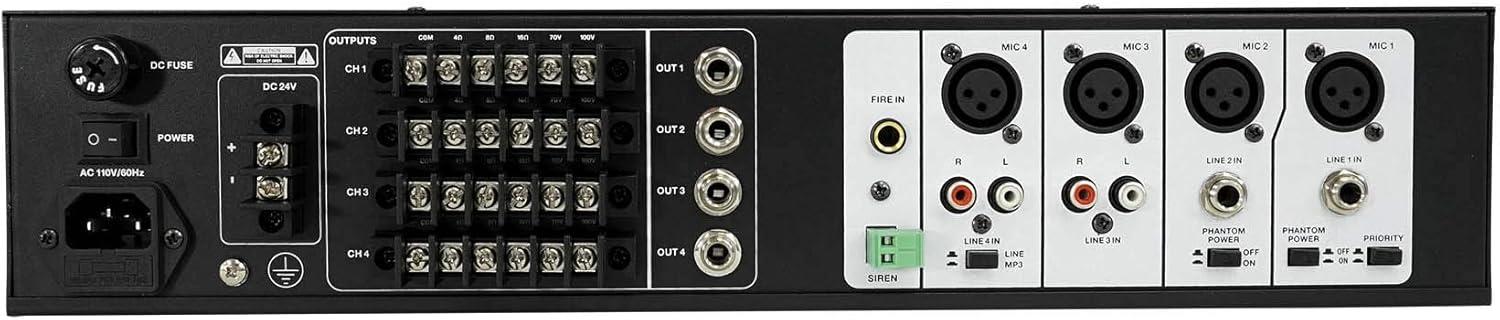

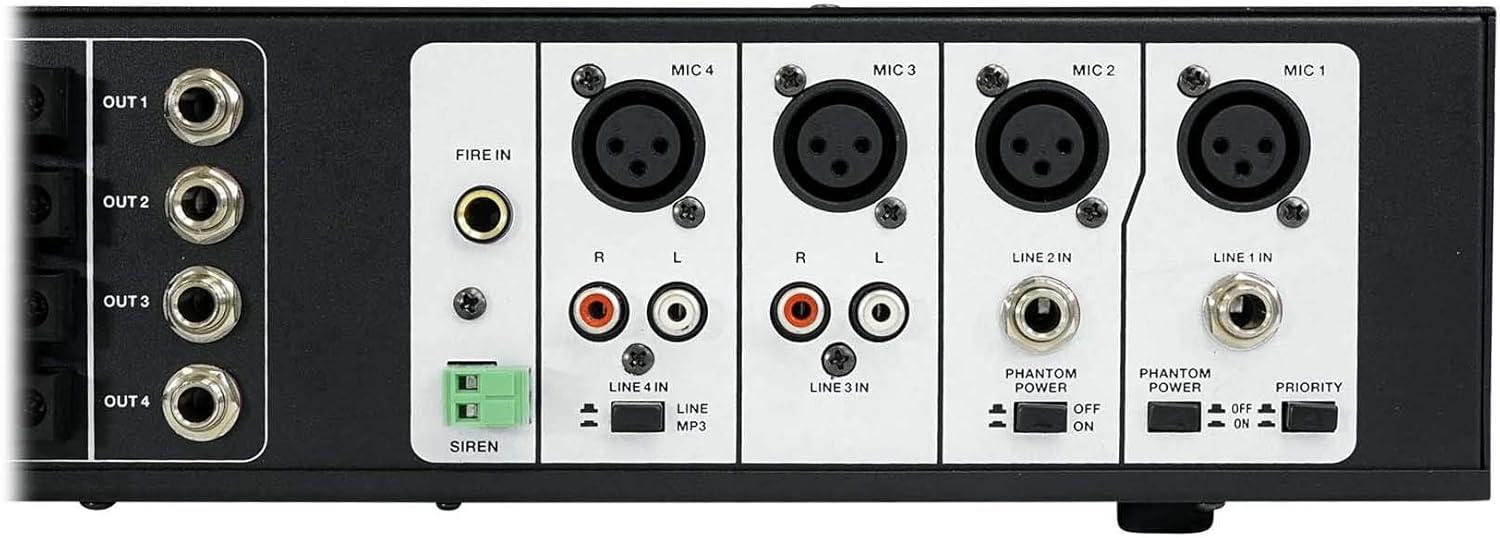

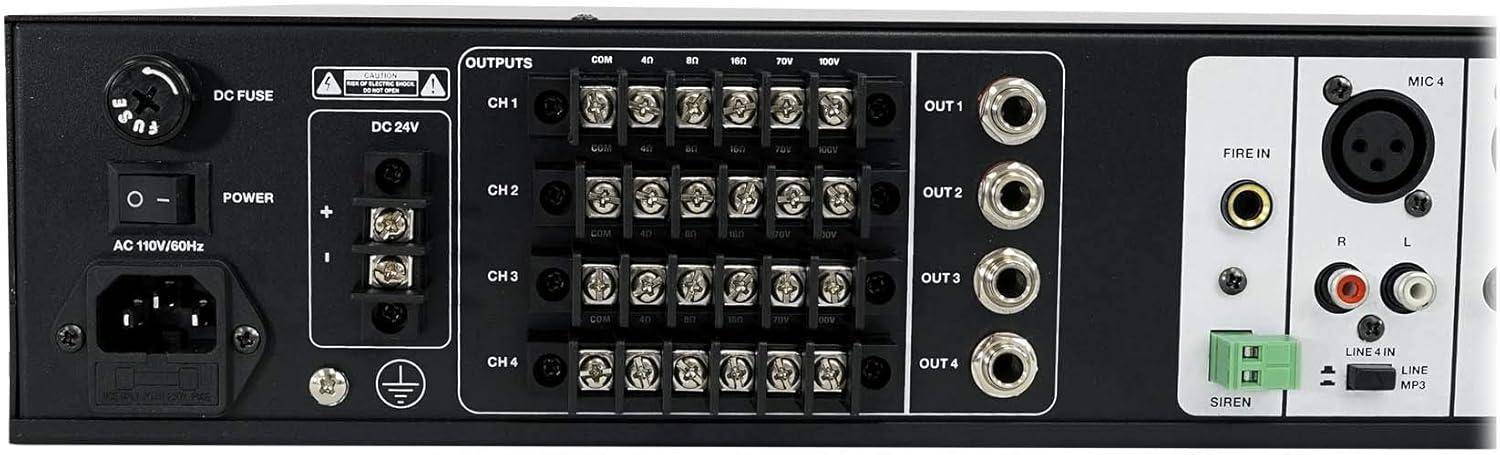

Emergency DC 24V input terminals allow you to connect a 24V battery to power the amp in case of a power outage. Inputs and Outputs: (2) Sets RCA AUX inputs. (4) XLR Mic inputs. (2) 1/4″ TS inputs. (4) 1/4″ TRS LINE outputs (one per zone) (allows you to add another amplifier or a powered sub to any zone that needs more speakers/subs). Fire input. Siren input. Each zone has speaker output terminals with options for 4 ohm, 8 ohm, 16 ohm, 70v, 100v output. Specifications:
