Description

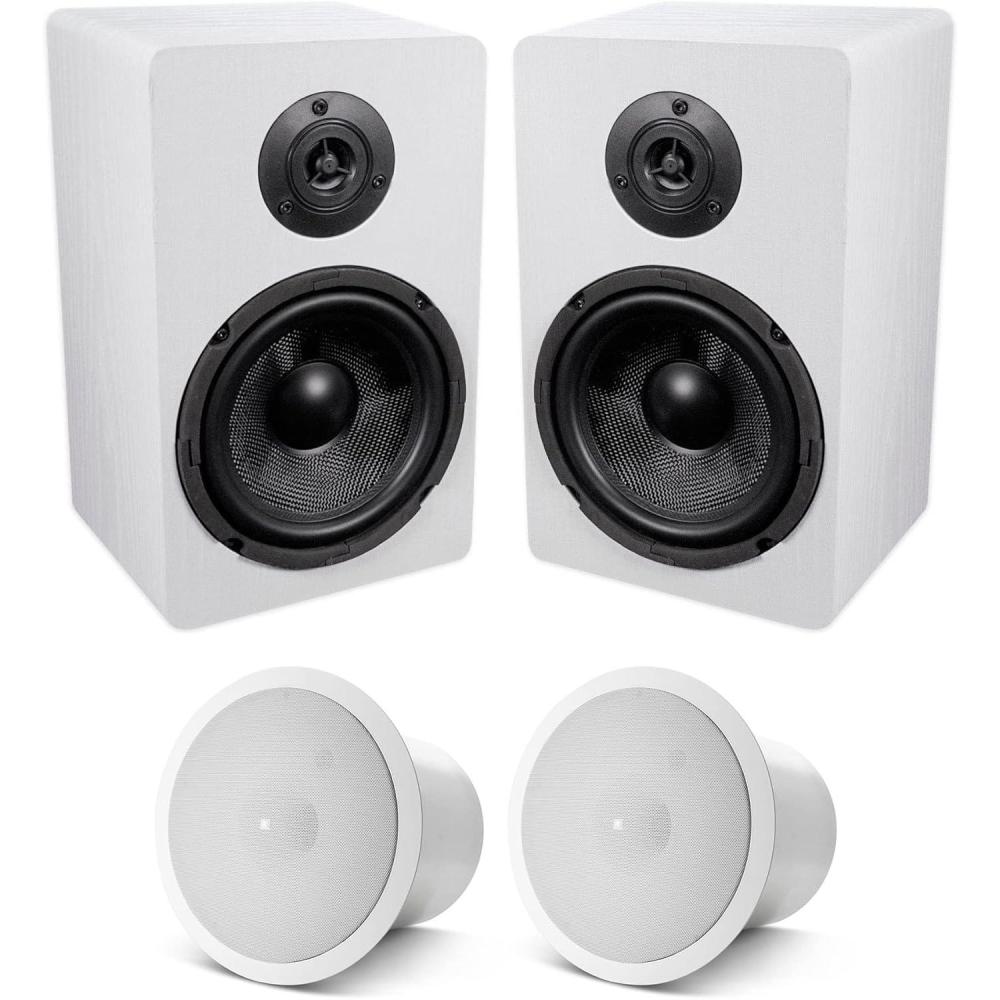

Package Includes: (1) Pair of Rockville RockShelf 68W 400w White 6.5″ Home Theater Bookshelf Speakers/8 Ohm. (1) JBL CONTROL 19CS 8″ 200 Watt In-Ceiling Home Subwoofers 8-Ohm Sub. JBL CONTROL 19CS 8″ 200 Watt In-Ceiling Home Subwoofers 8-Ohm Sub. Unique Nested Chamber design and Linear Dynamic Aperture port design delivers high output from a compact enclosure.. JBLs exclusive SonicGuard overload protection allows higher operational levels and improved. system reliability.
Component: Long excursion 200 mm (8 in) driver.. Packaged with grille, backcan and tile rails for fast installation and easy stocking.. Simple installation and wire connection method.. Frequency Range 42 Hz – 200 Hz. Power Capacity 200 W Continuous Program Power. Nominal Sensitivity 95 dB SPL, 1W @ 1 m (3.3 ft) in ceiling near corner (?/2) 89 dB SPL, 1W @ 1 m (3.3 ft) in center of ceiling (2?). Nominal Coverage Angle 180 conical coverage
Rated Maximum SPL 115 dB @ 1 m (3.3 ft) in ceiling near corner (?/2). Nominal Impedance 8 ohms. Low Frequency 200 mm (8.0 in) Polypropelene cone.. 38 mm (1.5 in) coil on aluminum former. Enclosure Material Backcan: Formed steel Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0. Overload Protection Full-range power limiting to protect network and transducers. (On Control 19CS, not on Control 19CST)
Terminations Removable locking connector with screw-down terminals. 2 input terminals and 2 loop-thru output terminals. Max. wire size 12 AWG (2.5 mm2). Safety Agency Rating In accordance with IEC60849 / EN60849. Suitable for use in air handling spaces, per U.L.-2043, U.L.-1480, NFPA90, NFPA70A.. Outside Dimensions (H x Dia) 345 x 345 mm (13.6 x 13.6 in) 318 mm (12.5 in) front of ceiling tile to. back of backcan. Cutout Size (H x W) 305 mm (12.0 in). Net Weight (ea) 5.5 kg (12 lb

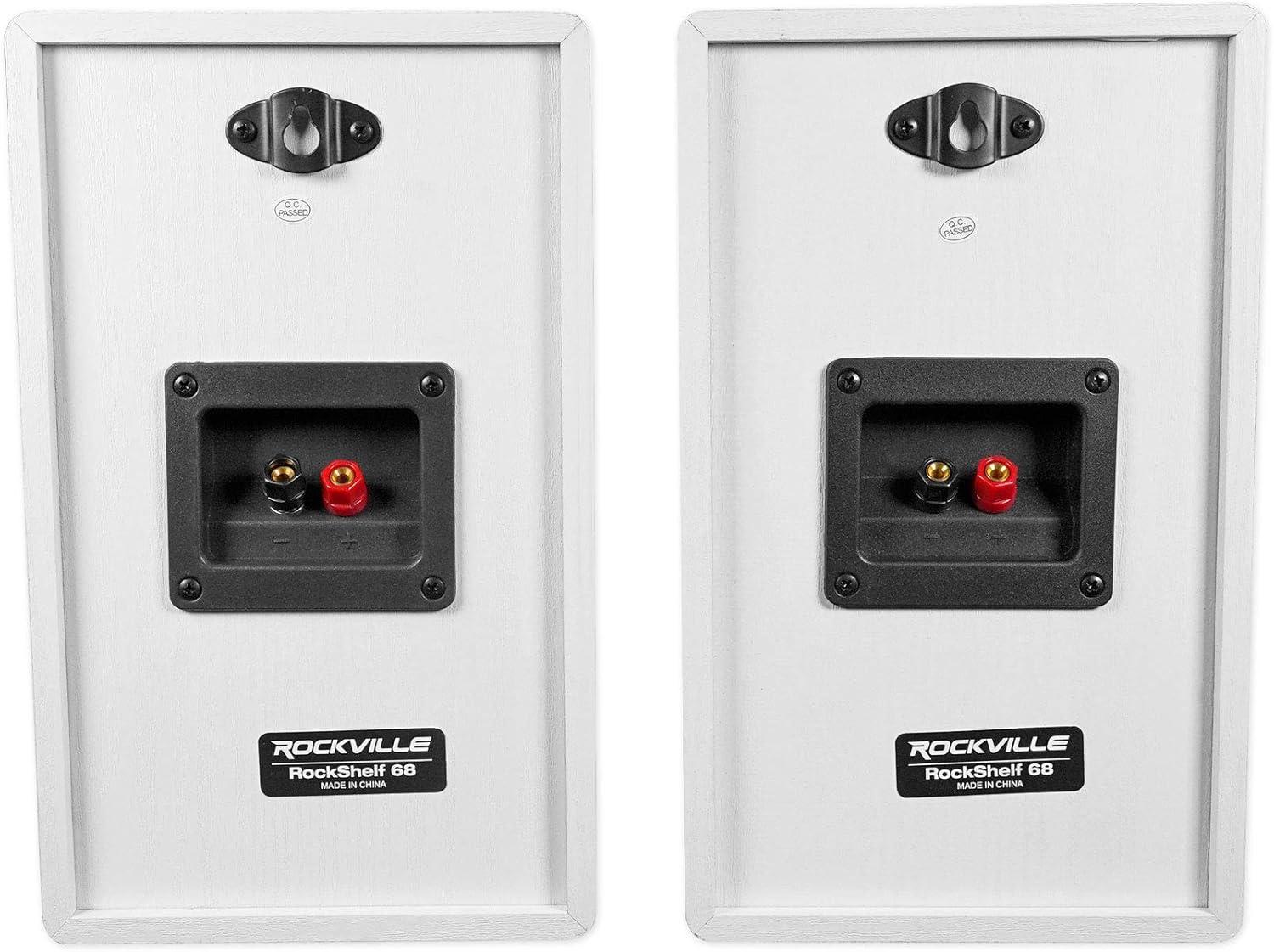

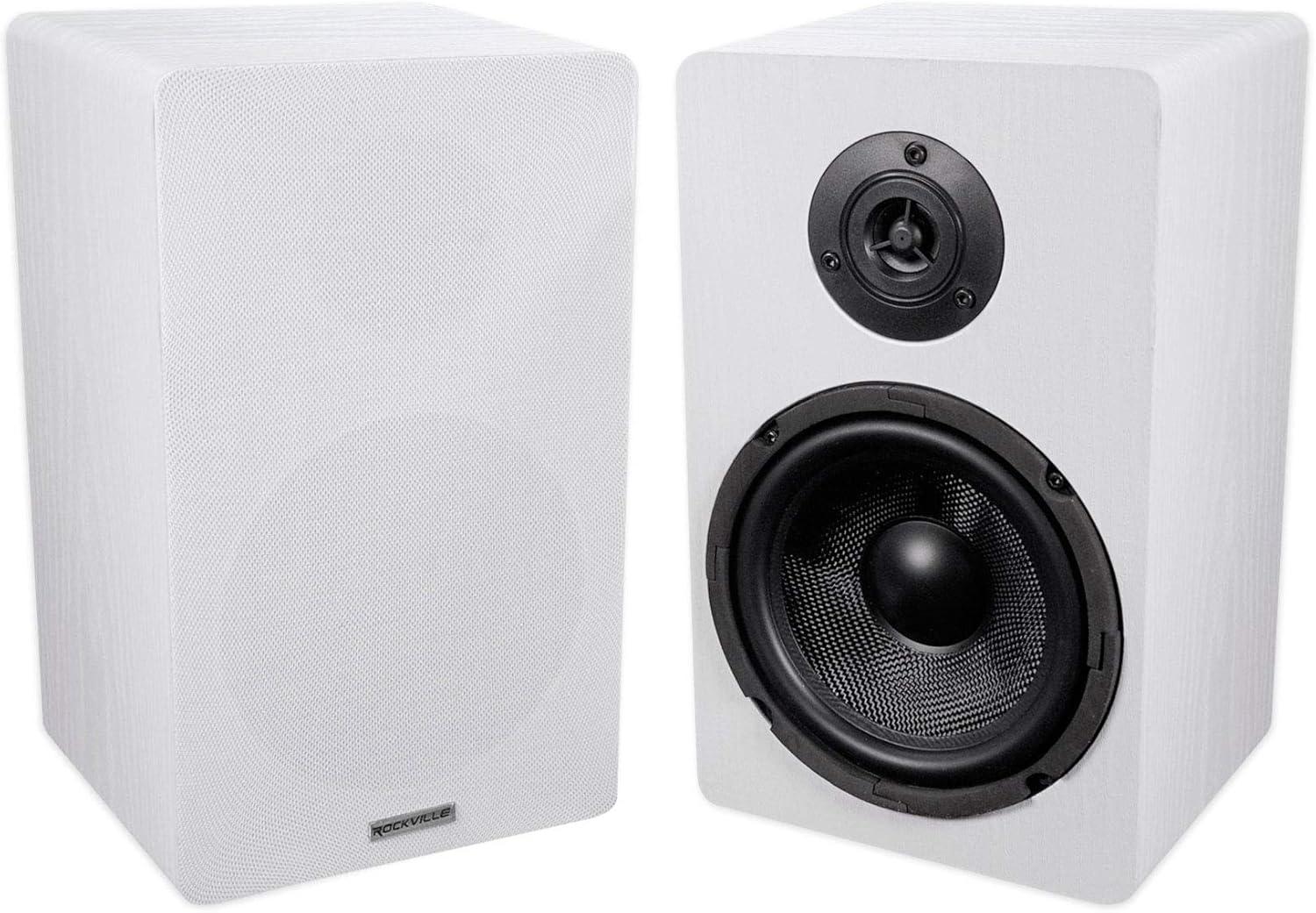

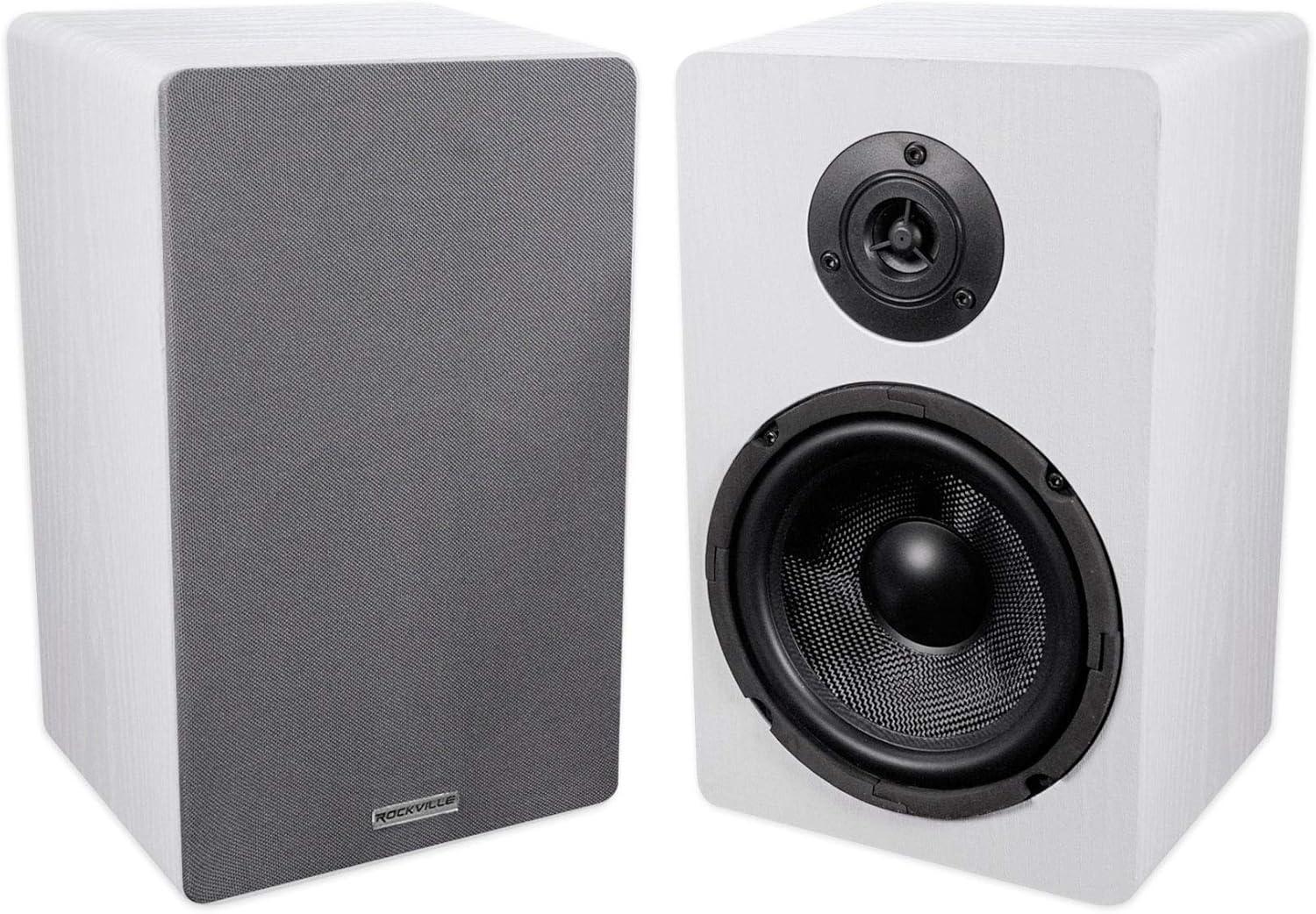

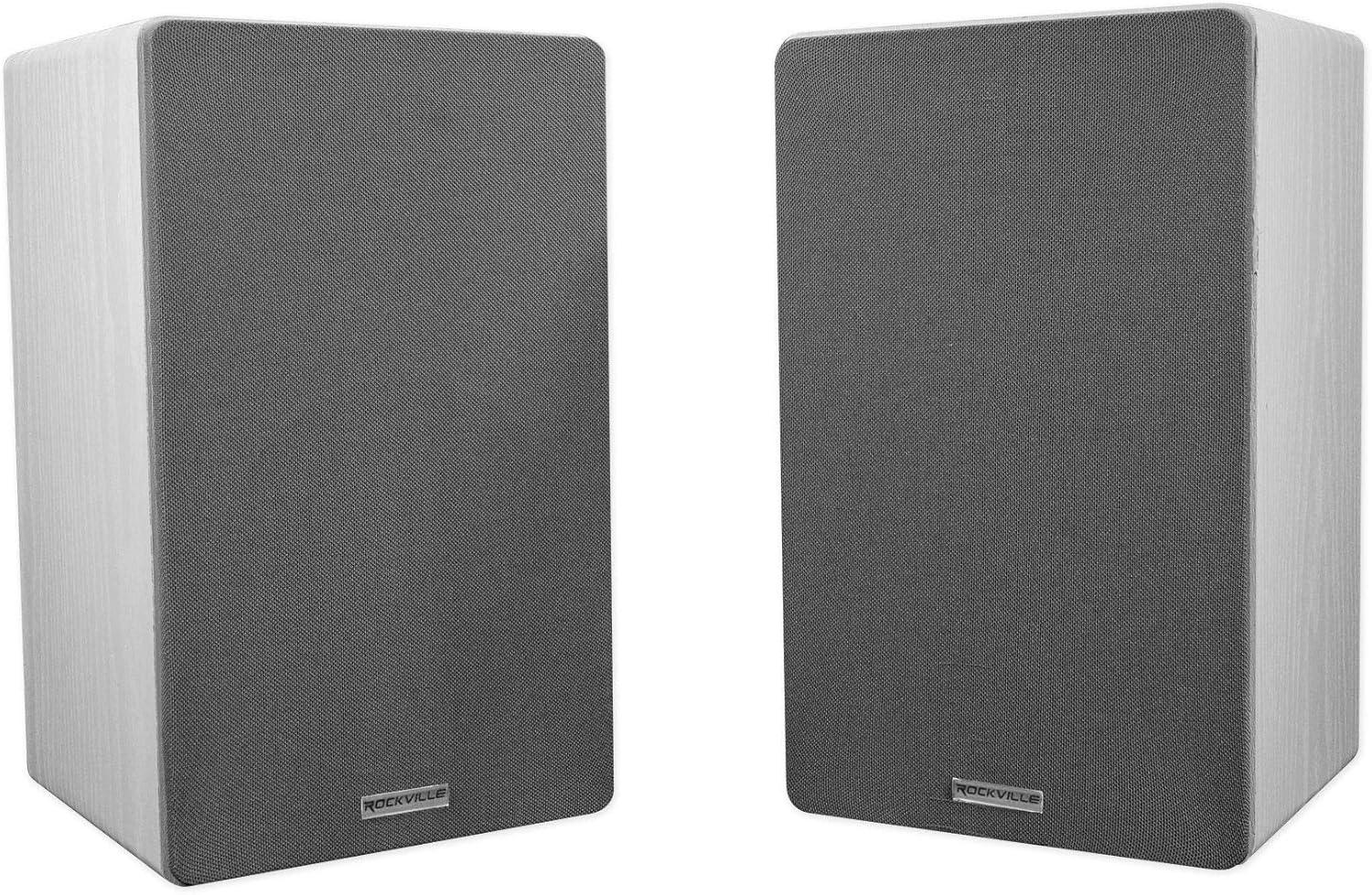

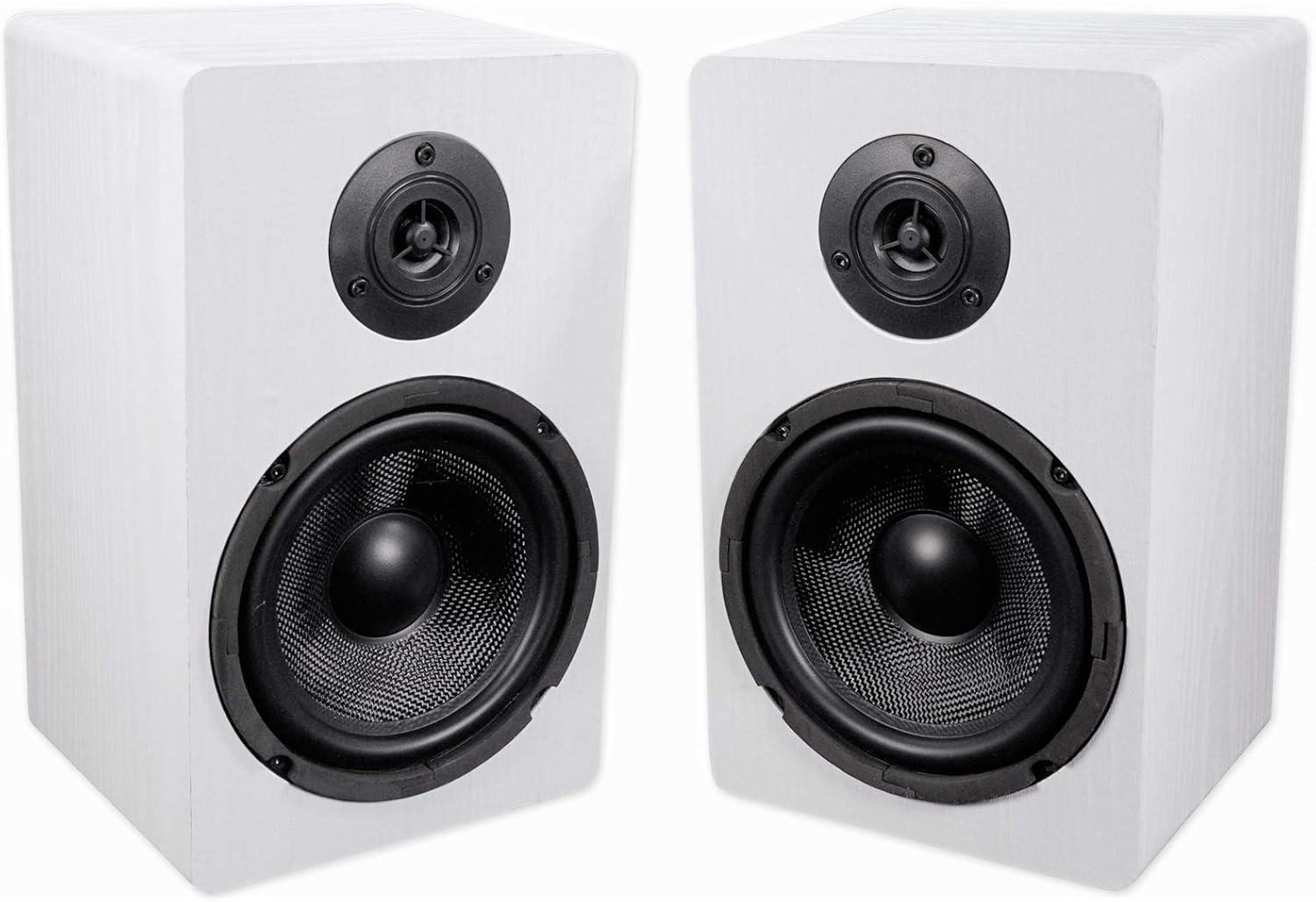

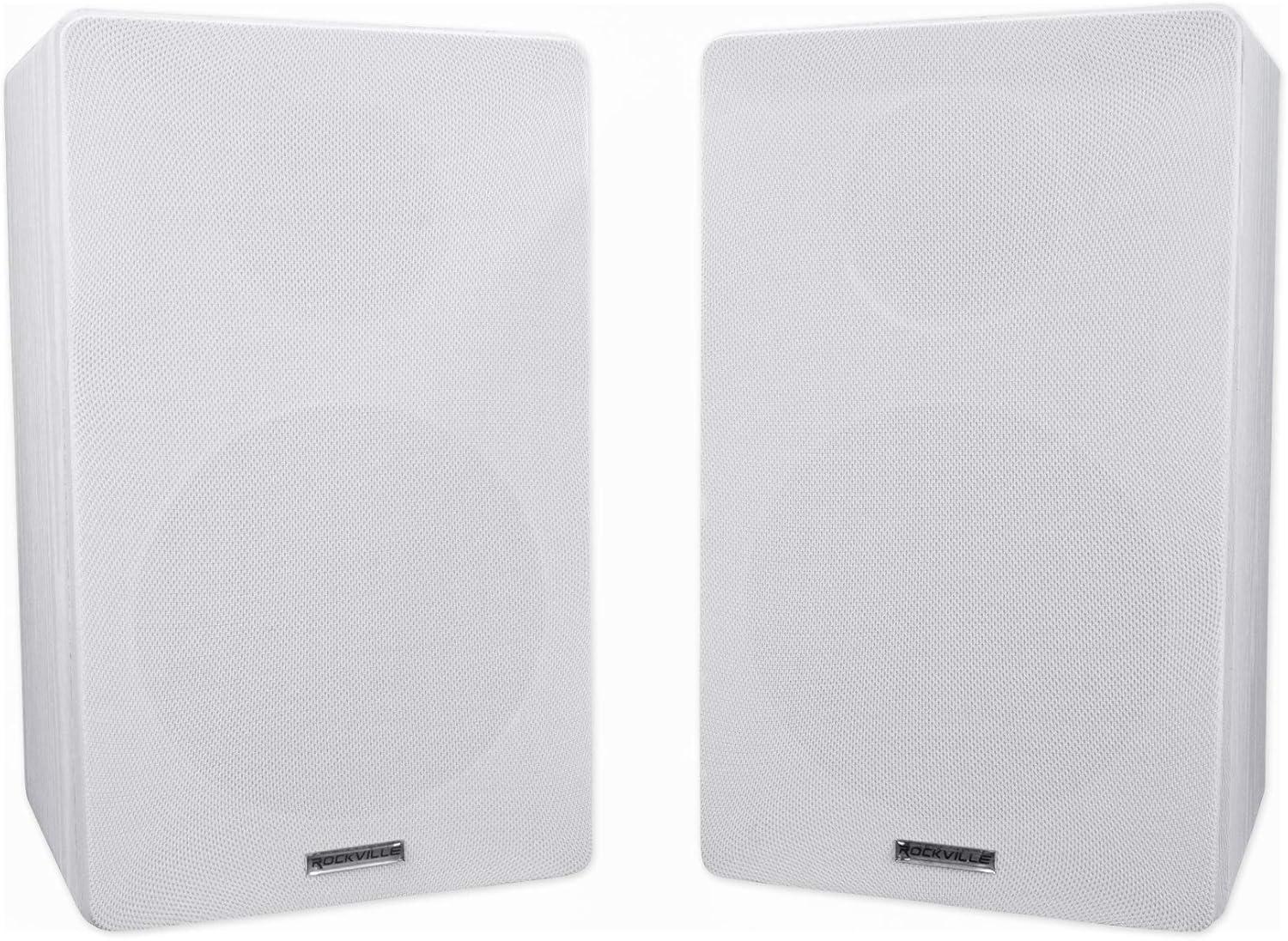

Shipping Weight (pair) Control 19CS: T12.7 kg (28 lb). Control 19CST: 14.3 kg (32 lb). Included Accessories C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector. Features: Pair Rockville RockShelf 68W White 6.5″ Home Bookshelf Speakers w/ Kevlar Woofers. RMS Power: 50 Watts Each / 100 Watts per pair. Peak Power: 200 Watts Each / 400 Watts per pair. Woofer: 6.5 Kevlar cone
