Description

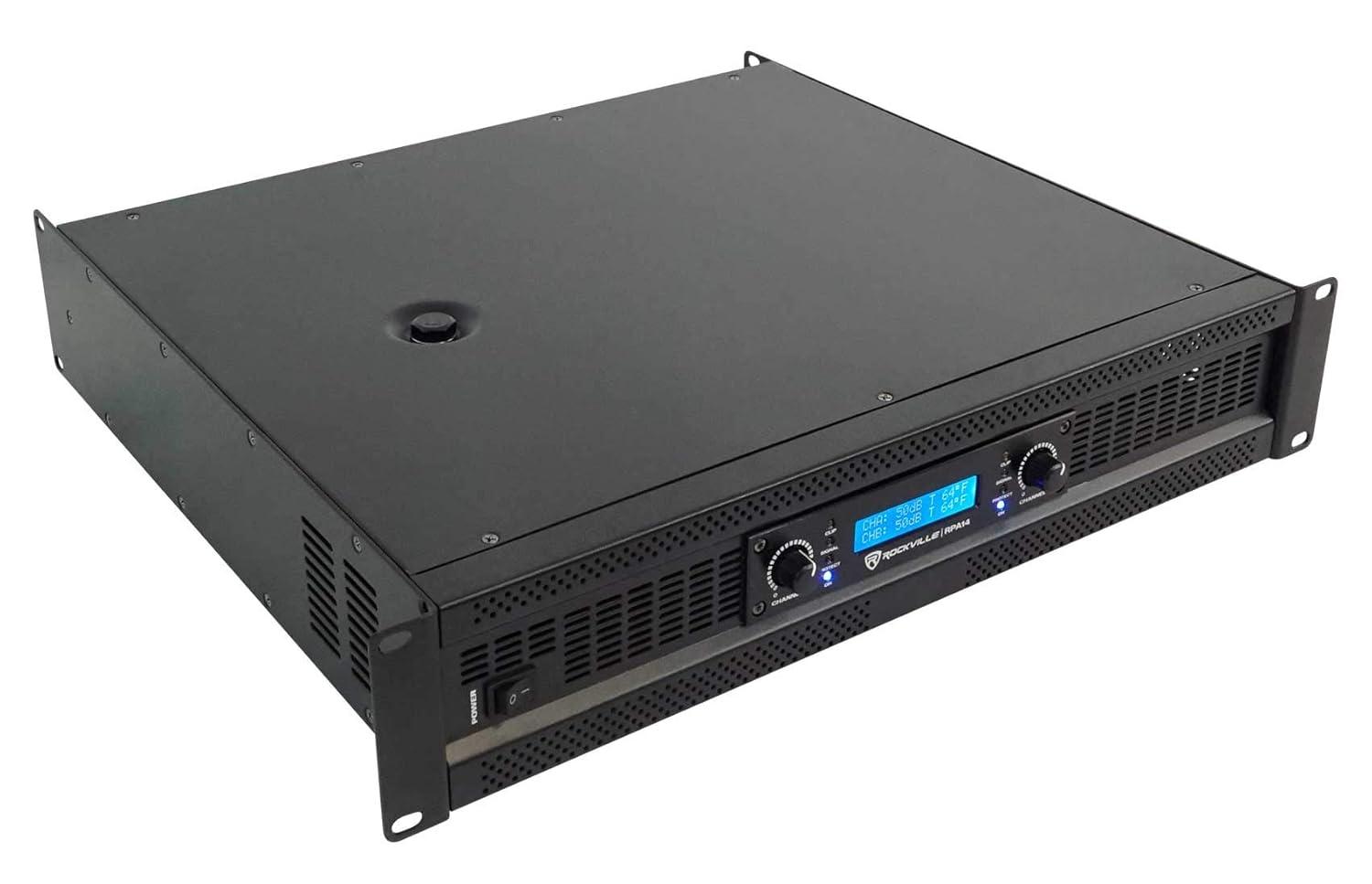

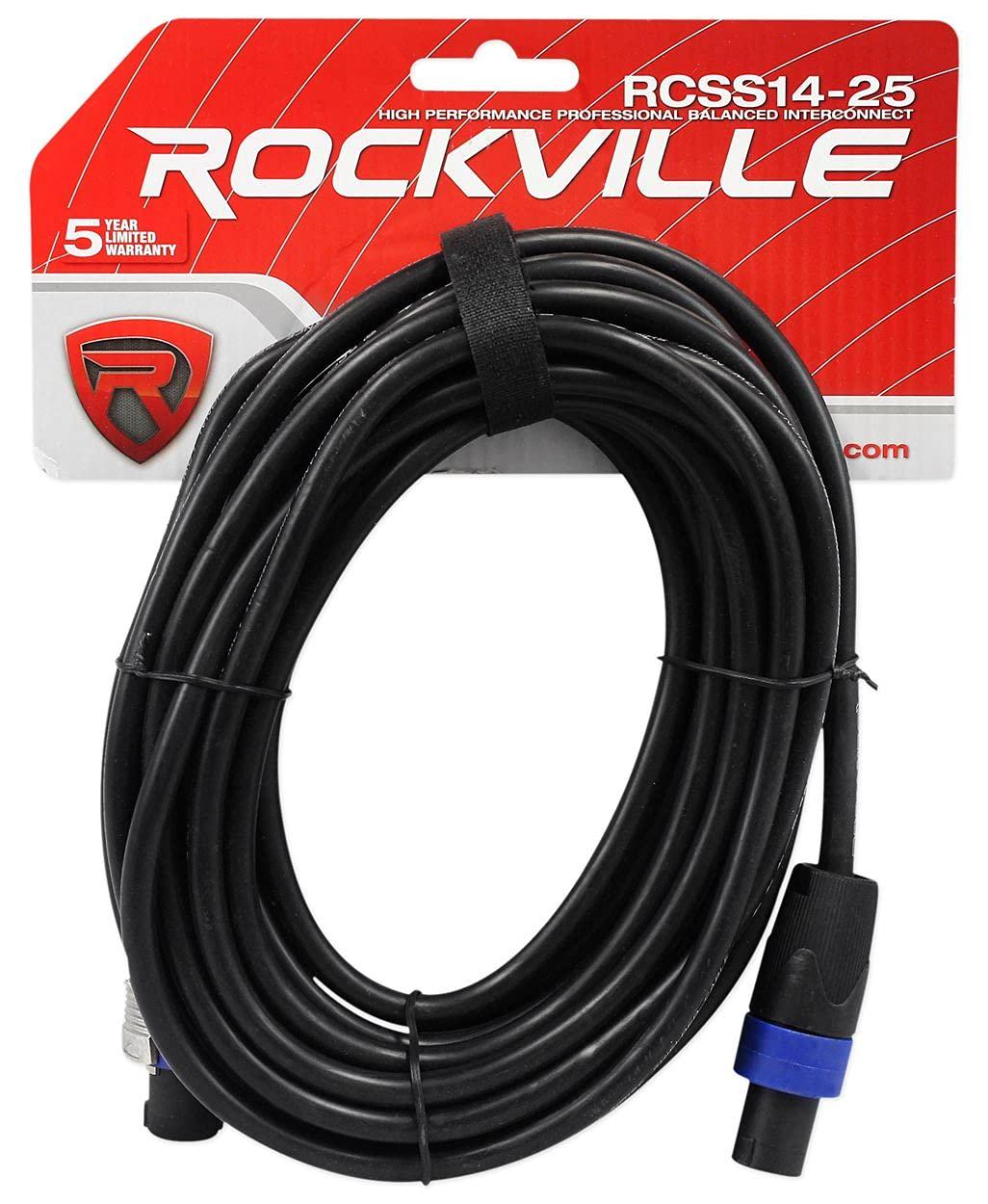

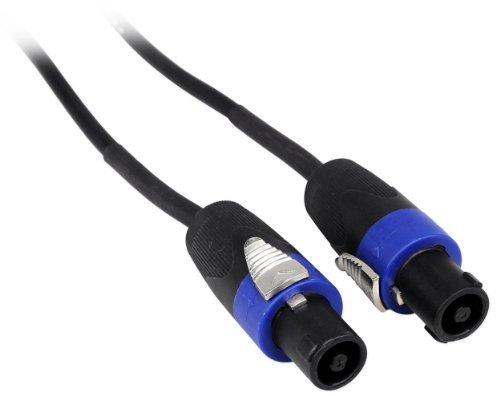

Package Includes: (1) RockvilIe RPA14 7000 Watt Peak / 2000w RMS 2 Channel Power Amplifier Pro/DJ Amp. (2) Rockvile RCSS1425 25' 14 AWG Speakon to Speakon Speaker Cable 100% Copper. Power Ratings: RMS Power Output: Stereo 8 Ohm: 2 x 700W. Stereo 4 Ohm: 2 x 1000W. Bridged 8 Ohm: 1 x 2000W. Peak Power Output: Stereo 4 Ohm: 2 x 3500W Max. Bridged 8 Ohm: 1 x 7000W Max. Terminals: Input Terminals: Combo jack (XLR and ) A & B inputs. Output Terminals: Banana binding post speaker output

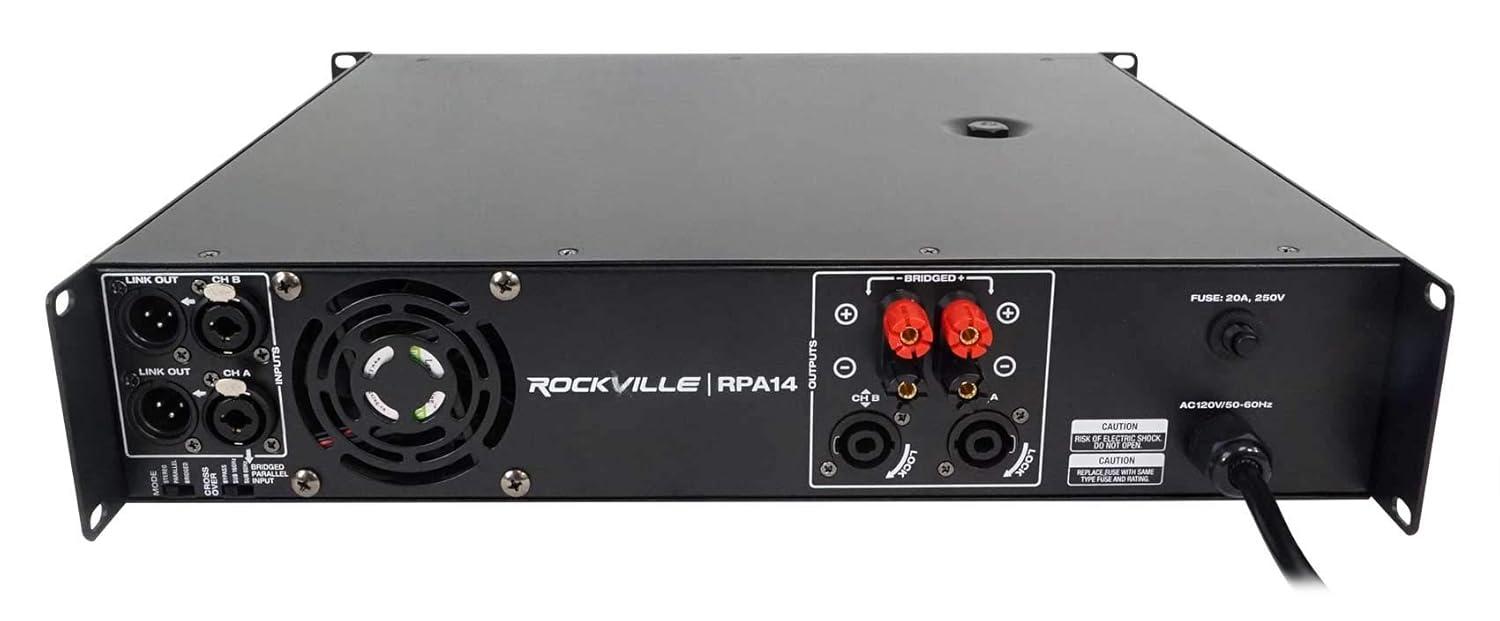

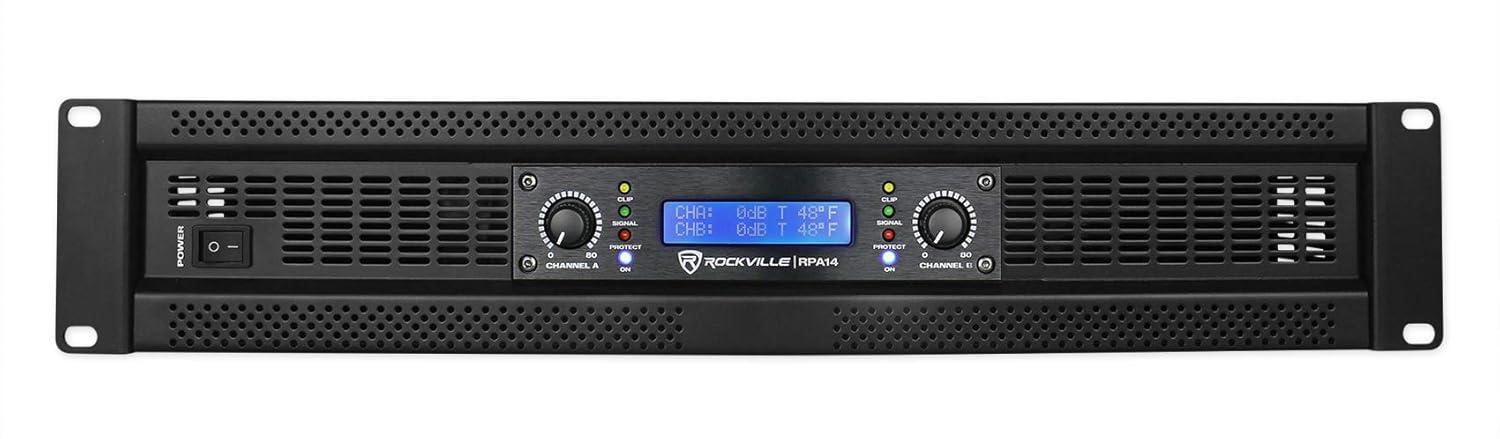

Speakon output. XLR output to connect another amplifier or powered sub. Features of RPA14: RockvilIe RPA14 7000 Watt Peak 2 Channel Professional/DJ Rack Mount Amplifier. LCD displays volume in dB per channel and operating temperature. 2U rack space. Built in limiter protects your speakers from distortion and clipping. Bridged mode allows you to combine both channels power into one channel for use with a subwoofer
Stereo mode is perfect for (2) speakers or (4) speakers in a left and right configuration. Parallel mode gives you dual mono output signal which is perfect for monitor use when you want all sounds coming out of each speaker instead of a left/right configuration. Built in crossover switch (bypass, 80 Hz, 160 Hz) allows amp to be used with full range PA speakers, or Subwoofer(s). Channel A & B Clipping Led Indicators. Channel A & B Separate Level Controls
Power, signal, clipping, and protection LED indicators on front of amp. Heavy duty rack mount ears with handles. Built-in variable high velocity quiet cooling fans. Maximum headroom for 4-ohm and 8-ohm Speakers. Level controls for precise setting and matching of sensitivity. Computer controlled IC protection circuitry against speaker short circuit, thermal over load, DC over load. User serviceable fuse (20A, 250V). Frequency Response (bandwidth @ 2Vrms out, @ -3.0dB) 10 Hz 30 Khz
THD + Noise @ 1Khz full power: <0.03%. Input Impedance: 10K Ohm Balanced. Input signal voltage: 660mV 1.5V. Input sensitivity: 0.7v. Damping factor: ( 100Hz, 10w, 4 ohms): 43.4. Damping factor: (1Khz @ 8 ohm): >400:1. Effective damping factor (100Hz, 10w, 4 Ohms) 1.08. Output impedance at speaker terminals: 0.09214 Ohms. Frequency Response vs THD+N (worst case, across normal bandwidth 1W) 0.6%. Signal to Noise Ratio: > 100dB. IMD 60Hz & 1kHz, 4:1: <0.04%
Package Dimensions : 22.2 x 21.2 x 7.1 inches; 34.1 Pounds
Item model number : RPA14+(2) RCSS1425
Date First Available : March 7, 2022
Manufacturer : Rockville
Best Sellers Rank: #162,056 in Musical Instruments (See Top 100 in Musical Instruments)
- #594 in Power Amplifiers
