Description

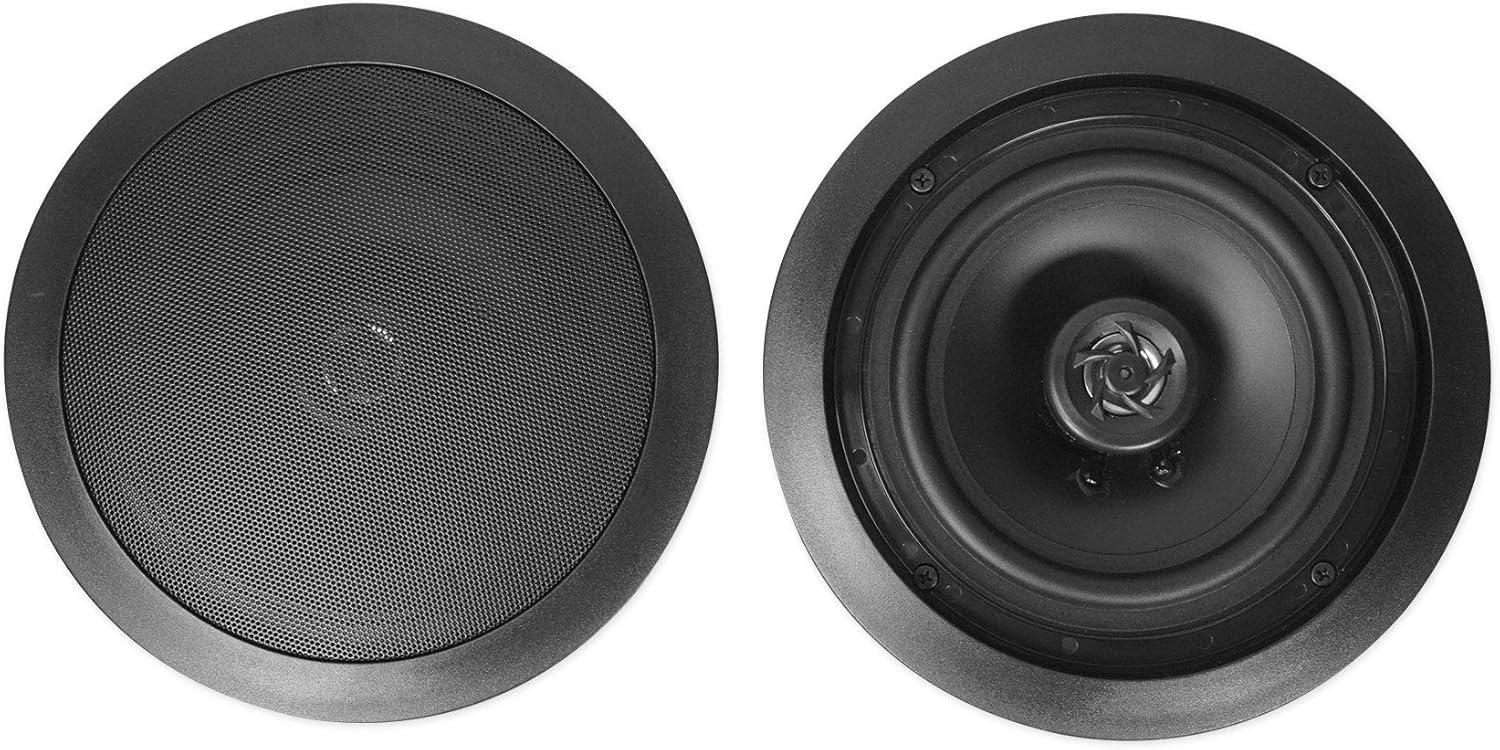

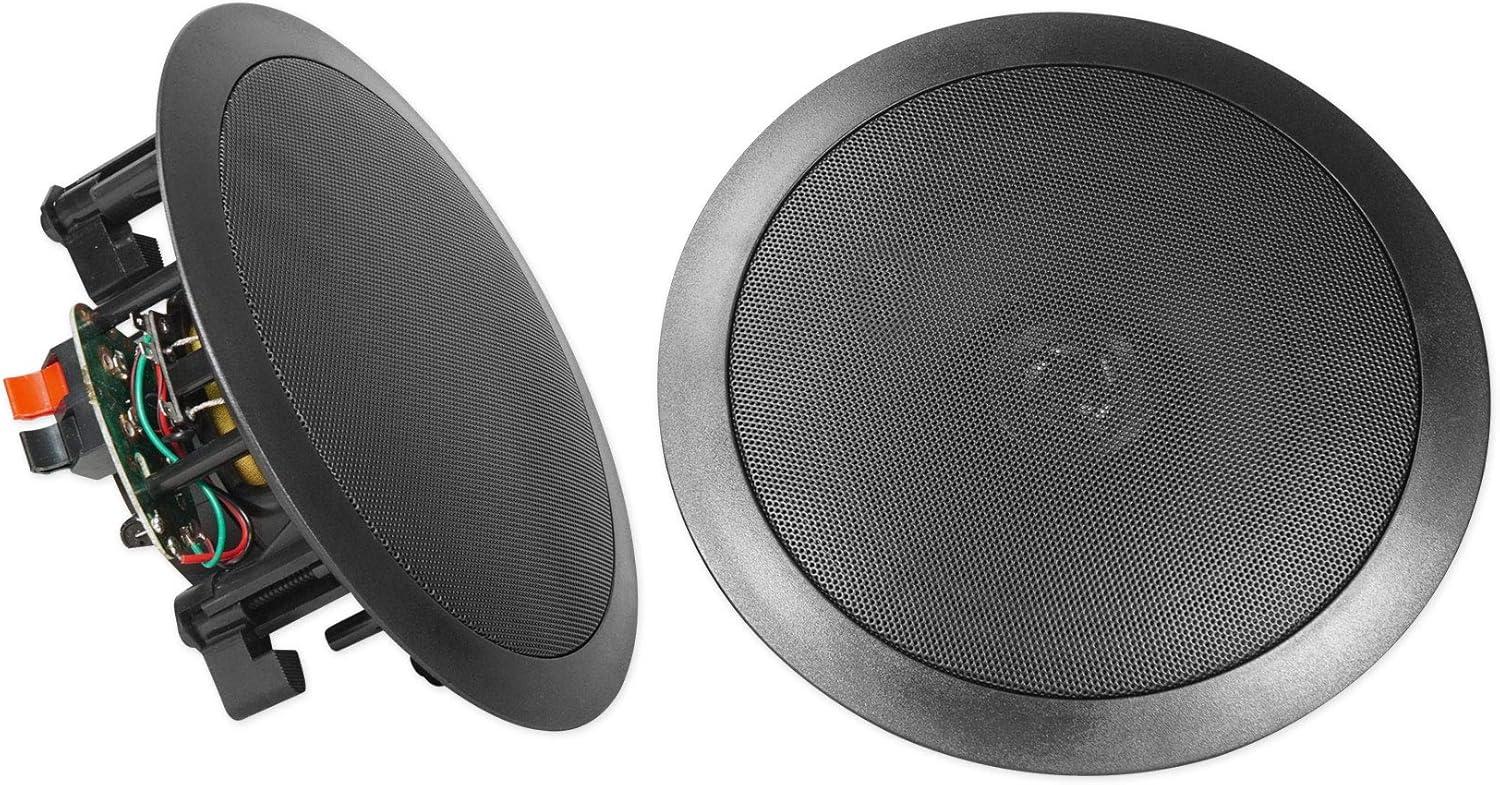

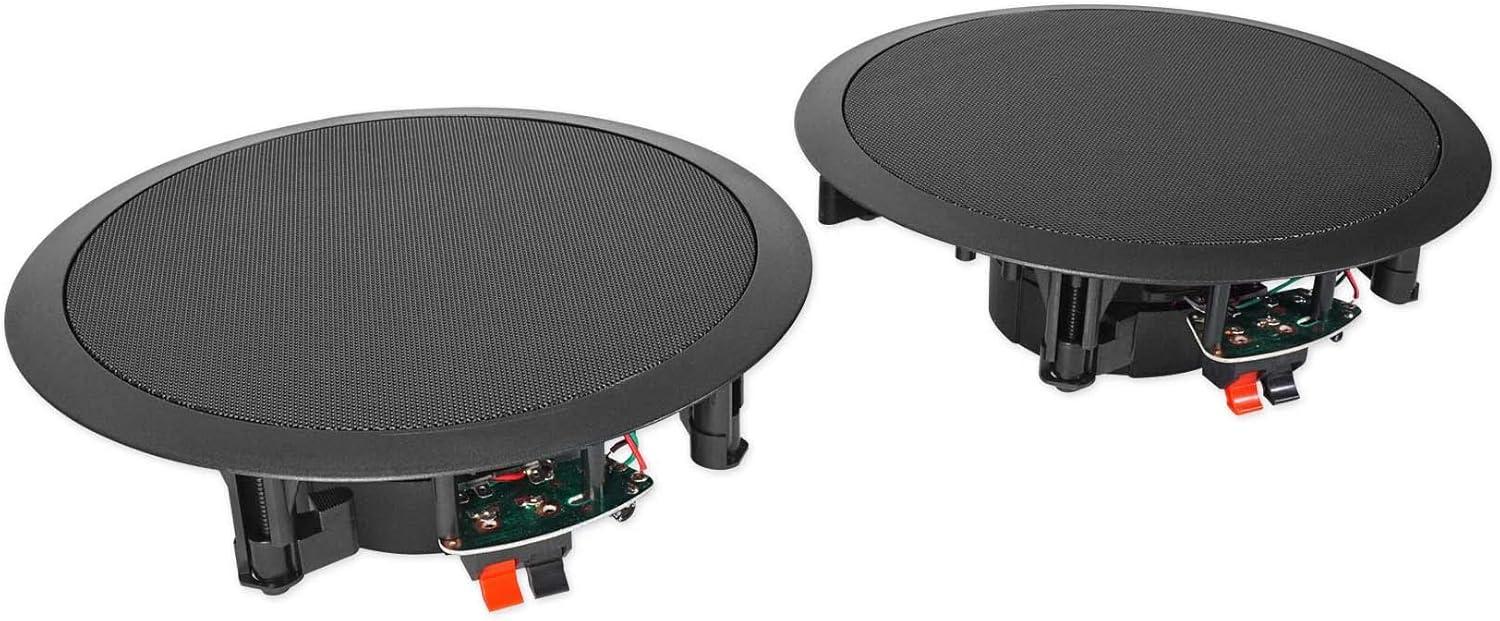

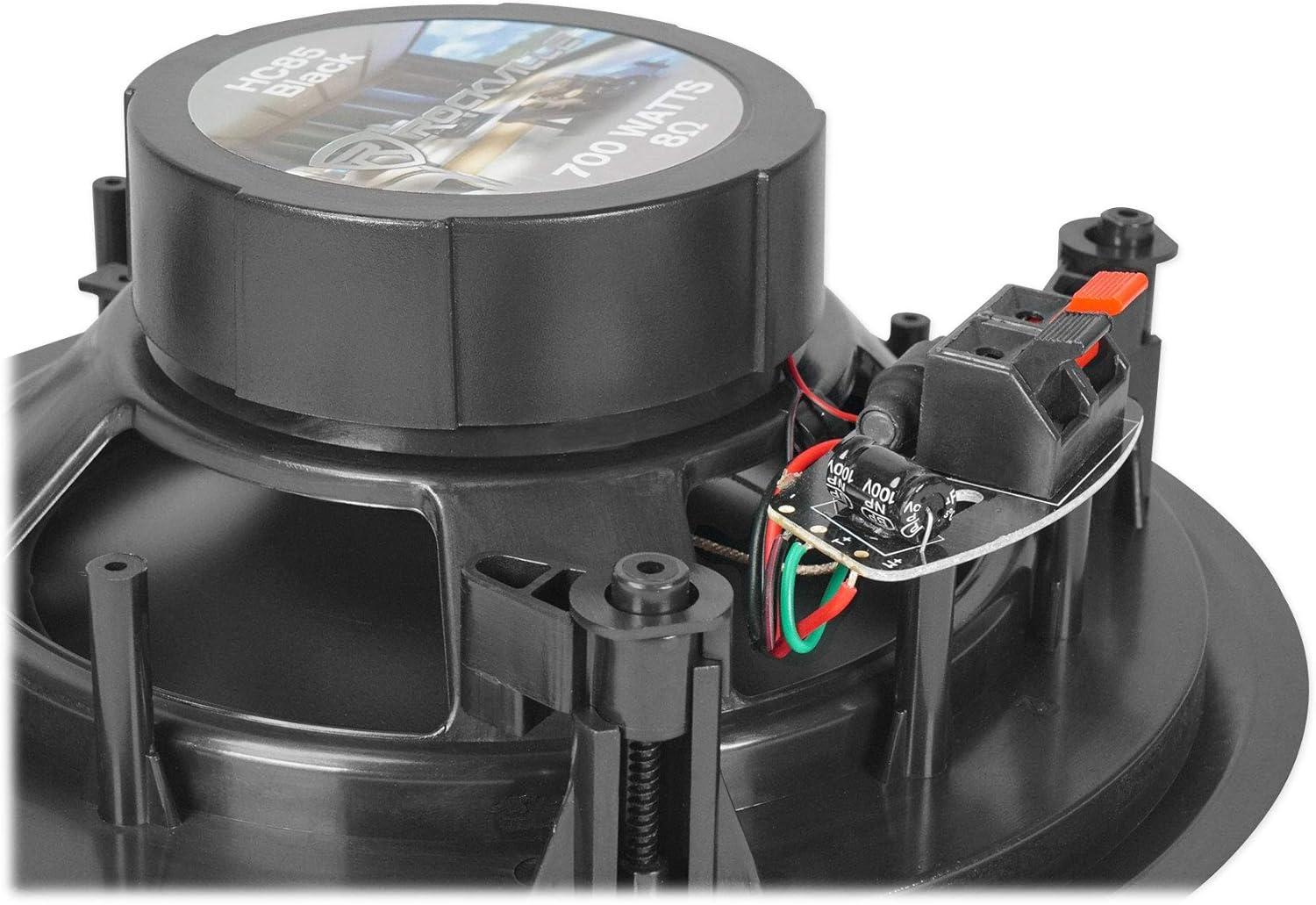

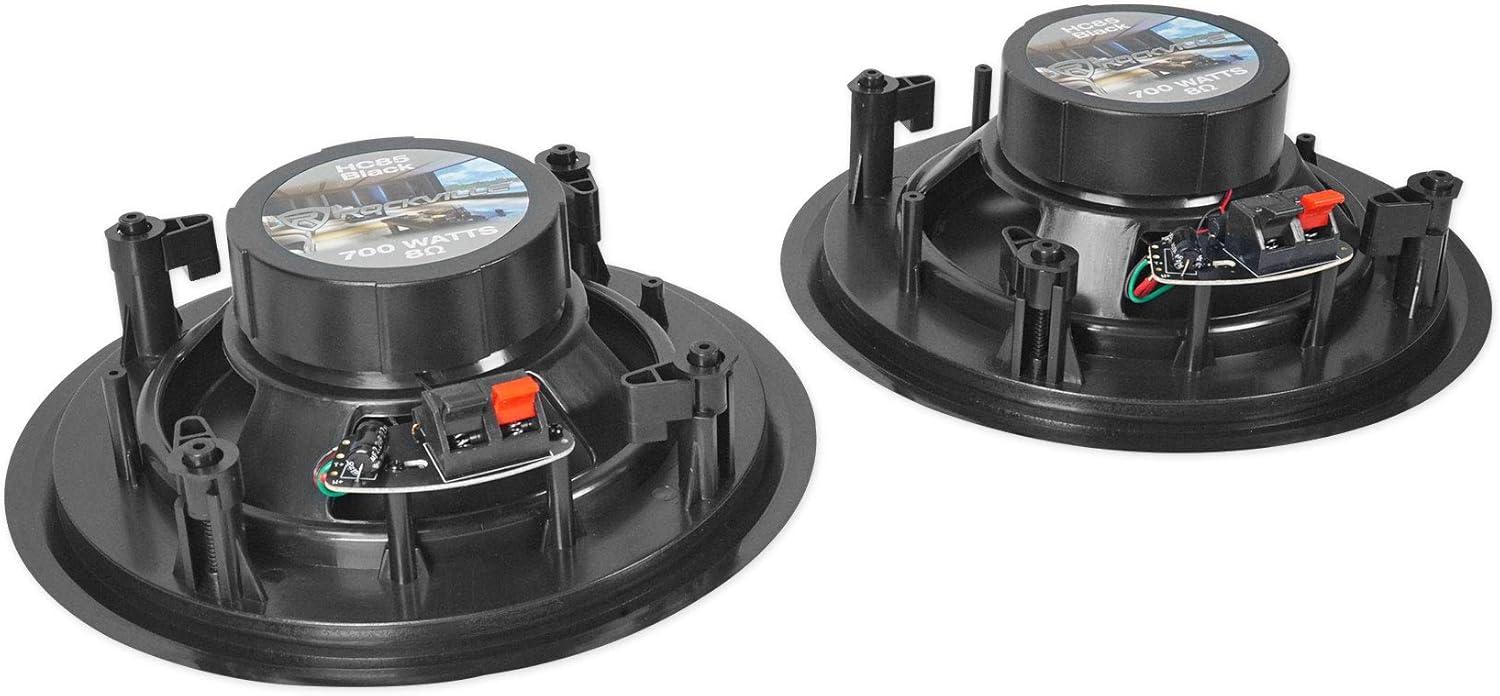

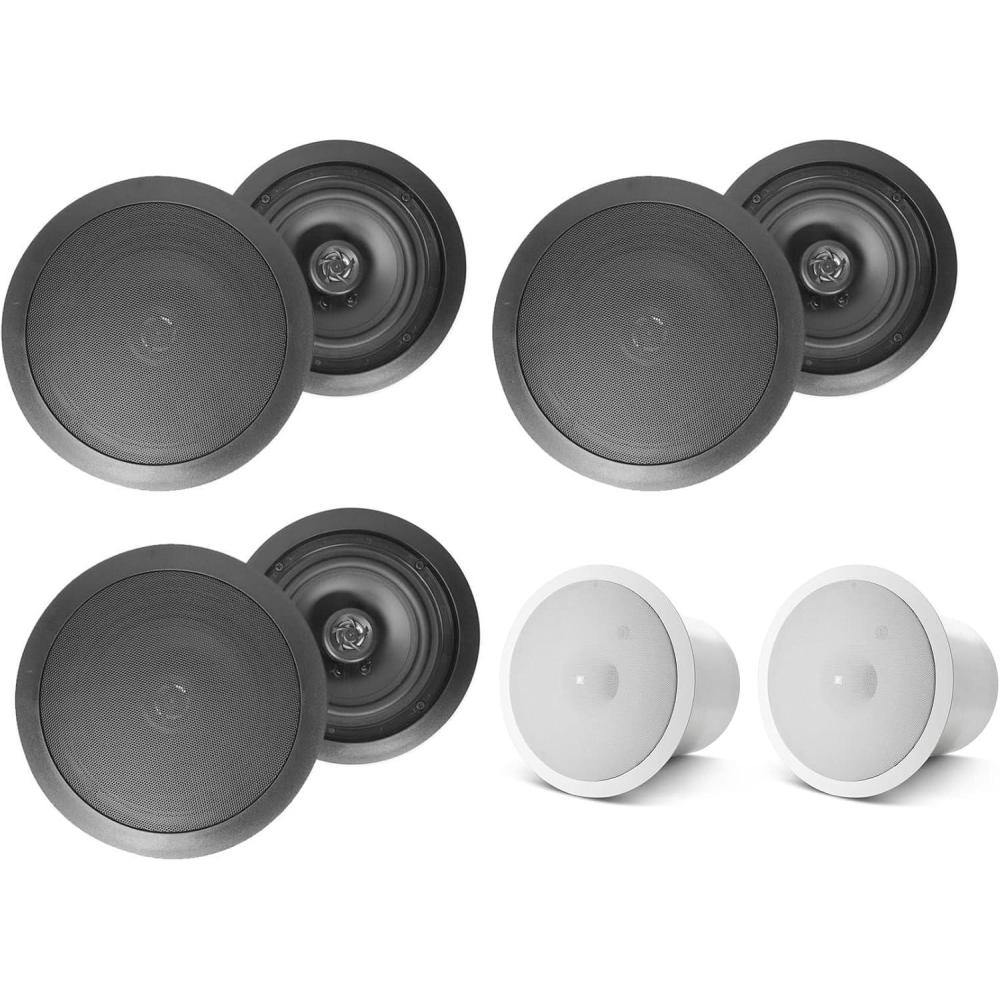

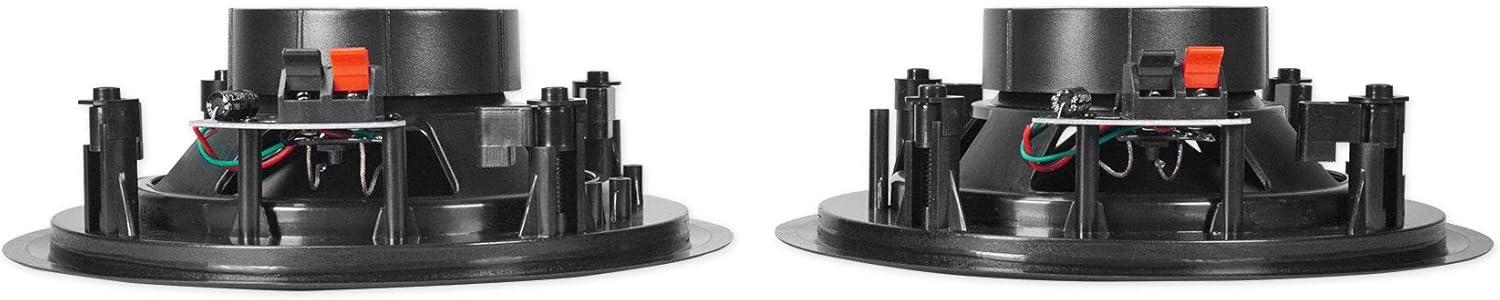

Package Includes: (3)Pair Rockville HC85 Black 8″ 700 Watt In-Ceiling Home Theater Speakers 8-Ohm. (1) JBL CONTROL 19CS 8″ 200 Watt In-Ceiling Home Subwoofers 8-Ohm Sub. Features: Pair Rockville HC85 Black 8″ 700 Watt In-Ceiling Home Theater Speakers 8-Ohm. Peak Power Handling: 350 Watts (per speaker) / 700 Watts (per pair). RMS Power Handling: 120 Watts (per speaker) / 240 Watts (per pair). Polypropylene Cone. Rubber Surround. 8 Woofer. 1 Aluminum Voice Coil. Mylar Dome Tweeter
20 oz. Ferrite Magnet. High Quality Spring Loaded Push Terminals. Aim-ableSwivel Tweeter. Paintable Flush Mount Grills. Frequency Response: 40Hz 20KHz. Sensitivity: 89dB @ 1w / 1m. Impedance: 8 Ohms. Mounting Depth: 3.03. Cut-out Diameter: 9.3. Color: White (paintable). JBL CONTROL 19CS 8″ 200 Watt In-Ceiling Home Subwoofers 8-Ohm Sub. Unique Nested Chamber design and Linear Dynamic Aperture port design delivers high output from a compact enclosure.
JBLs exclusive SonicGuard overload protection allows higher operational levels and improved. system reliability.. Component: Long excursion 200 mm (8 in) driver.. Packaged with grille, backcan and tile rails for fast installation and easy stocking.. Simple installation and wire connection method.. Frequency Range 42 Hz – 200 Hz. Power Capacity 200 W Continuous Program Power
Nominal Sensitivity 95 dB SPL, 1W @ 1 m (3.3 ft) in ceiling near corner (?/2) 89 dB SPL, 1W @ 1 m (3.3 ft) in center of ceiling (2?). Nominal Coverage Angle 180 conical coverage. Rated Maximum SPL 115 dB @ 1 m (3.3 ft) in ceiling near corner (?/2). Nominal Impedance 8 ohms. Low Frequency 200 mm (8.0 in) Polypropelene cone.. 38 mm (1.5 in) coil on aluminum former. Enclosure Material Backcan: Formed steel Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0
Overload Protection Full-range power limiting to protect network and transducers. (On Control 19CS, not on Control 19CST). Terminations Removable locking connector with screw-down terminals. 2 input terminals and 2 loop-thru output terminals. Max. wire size 12 AWG (2.5 mm2). Safety Agency Rating In accordance with IEC60849 / EN60849. Suitable for use in air handling spaces, per U.L.-2043, U.L.-1480, NFPA90, NFPA70A.
